◆ Material: polyamide (PA6) / polyethylene (PE) / polypropylene (PP) / HB according to UL 94.
◆ Temp: polyamide (PA6)-40℃~+115℃+150℃
polyethylene (PE)-50℃~+80℃+100℃
polypropylene (PP)-40℃~+110℃+130℃
◆ Colour: Black and grey.
◆ Properties: Liquid and Dust proof; Highly resistant to oil, acid and solvents;Free of silicon, cadmium, halogen; Flexible, Iuster On Surface, abrasion resistant;
Racking resistant high mechanical strength; Black tubings are UV-resistant.
◆ Application: For protectively insulated electrical installations.
|
Part No. |

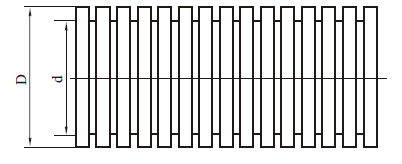

Inner D.× Outter D.(mm) |
Dimensions mm±10% |
Package(Meter/Roll) |
|
|
Stat |
Dyn |
|||
|
AD10.0 |
6.5×10.0 |
14 |
35 |
100 |
|
AD11.6 |
8.00×11.6 |
17 |
40 |
100 |
|
AD13.0 |
9.50×13.0 |
20 |
45 |
100 |
|
AD15.8 |
12.0×15.8 |
27 |
55 |
100 |
|
AD18.5 |
14.3×18.5 |
35 |
65 |
100 |
|
AD21.2 |
17.0×21.2 |
40 |
75 |
100 |
|
AD25.5 |
21.0×25.5 |
43 |
85.5 |
100 |
|
AD28.5 |
23.0×28.5 |
47 |
100 |
50 |
|
AD34.5 |
29.0×34.5 |
58 |
120 |
50 |
|
AD42.5 |
36.0×42.5 |
69 |
150 |
50 |
|
AD54.5 |
48.0×54.5 |
83 |
190 |
25 |
