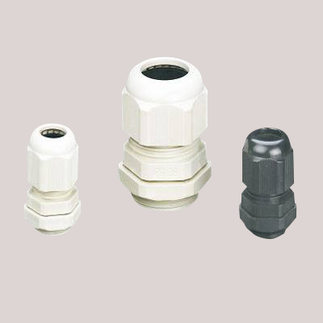

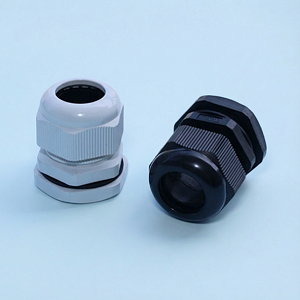

◆ Material: made from UL Nylon 66, 94V-2 and tighten ring from rubber.
◆ Feature:
1.Special design of clamp ring, good clamping strength and protective for electric machinery.
2.No need of disassembling the cable gland, cable can go through directly then tighten it, easy to operate and save time.
◆ Application：used for machinery control box, distribution plate, machine and electrical, etc.
|

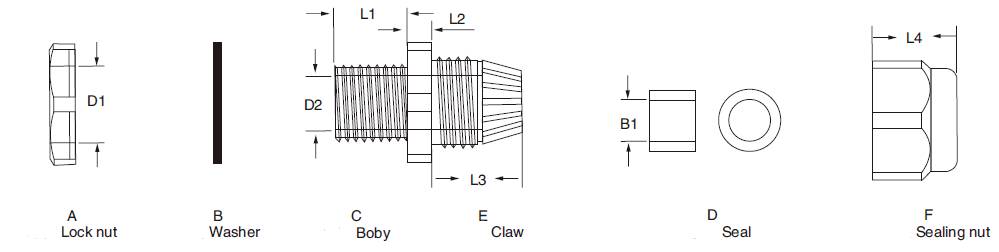

Item No. |
D1(mm) |
D2(mm) |
L1(mm) |
L2(mm) |
L3(mm) |
L4(mm) |
B1(mm) |
Cable Range |
|
mm |
||||||||
|
PG-07 |
12.1 |
8.7 |
8.3 |
5 |
15 |
13.8 |
6.9 |
3.5-6 |
|
PG-09 |
16.2 |
11.1 |
8.7 |
4.6 |
16.1 |
15.7 |
8.9 |
4-8 |
|
PG-11 |
18.8 |
13.4 |
8.7 |
5.1 |
18.1 |
17.9 |
11.3 |
5-10 |
|
PG-13.5 |
20.1 |
15.5 |
8.9 |
5 |
19.2 |
18.3 |
12.8 |
6-12 |
|
PG-16 |
22.3 |
17.6 |
11.3 |
5.2 |
20.2 |
18.1 |
13.7 |
10-14 |
|
PG-19 |
24.1 |
19.1 |
11.1 |
5.1 |
21.1 |
20.5 |
15.8 |
12-15 |
|
PG-21 |
26.7 |
21.4 |
11.1 |
5.1 |
23 |
22 |
17.4 |
13-18 |
|
PG-24 |
30.1 |
24.8 |
12.8 |
5.8 |
23.9 |
23.7 |
23.1 |
15.22 |
|
PG-29 |
35.9 |
28.8 |
11.9 |
6.9 |
24.4 |
23.5 |
25.3 |
18-25 |
|
PG-36 |
46.4 |
39.1 |
16 |
7.8 |
30.7 |
27.3 |
31.9 |
22-32 |
|
PG-42 |
53.9 |
46.7 |
15.4 |
7.9 |
33.2 |
28.5 |
37.1 |
30-38 |
|
PG-48 |
60.2 |
52.6 |
18 |
7.9 |
35.5 |
30.3 |
45.1 |
34-44 |
|
PG-63 |
70.6 |
63.9 |
28.9 |
8.9 |
41.4 |
41.3 |
49.3 |
42-54 |
|
Item No. |
D1(mm) |
D2(mm) |
B1(mm) |
L1(mm) |
L4(mm) |
Cable Range |
|
mm |
||||||
|
M12 ×1.5 |
12 |
8.3 |
6 |
7.9 |
13.3 |
3-6.5 |
|
M16×1.5 |
16 |
10.9 |
9.6 |
15 |
15.8 |
5-10 |
|
M20S×1.5 |
20 |
14.8 |
12.5 |
15 |
18.4 |
3-8 |
|
M20M×1.5 |
20 |
14.8 |
12.5 |
15 |
18.4 |
6-12 |
|
M20L×1.5 |
20 |
15.5 |
14.5 |
15 |
19.5 |
10-14 |
|
M25×1.5 |
25 |
21 |
18.4 |
15 |
22.3 |
13-18 |
|
M32×1.5 |
32 |
26 |
26.2 |
15 |
24.8 |
18-25 |
|
M40×1.5 |
40 |
33 |
33.4 |
18 |
31.6 |
25-32 |
|
M50×1.5 |
50 |
42.5 |
36.5 |
18 |
31.6 |
|
