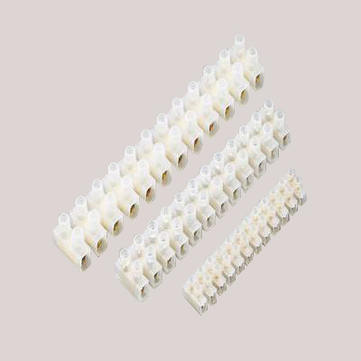

Terminal Block

Terminal Block

  • Product ID:NC-38
  • Material:PE,PP,Nylon

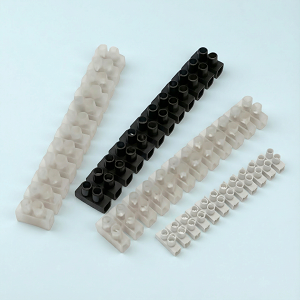

  • Color:White,Black
  • Model:H & U
  • Product description: terminal block
  • INQUIRY

Material:

◆ PE,Working Termperature:- 40℃ to 65℃, short time is 80℃.

◆ PP,Working Termperature:- 30℃ to 90℃, short time is 110℃.

◆ PA,Working Termperature:- 35℃ to 120℃, short time is 140℃.

◆ Brass,Iron screw.

◆ Voltage:250 - 450V

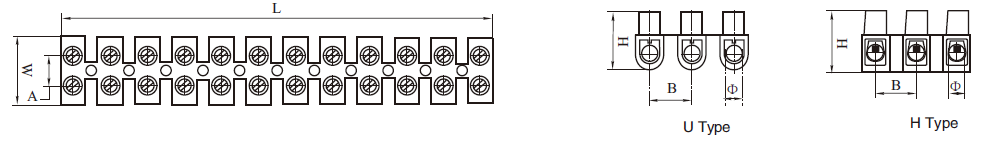

Item No.

L(mm)

W(mm)

H(mm)

A(mm)

B(mm)

Φ(mm)

Rated Voltage

Rated Current

Wire Range

TB-3A

90.3

15.5

11.5

6

7.7

φ3.1

380V

3A

2.5-4.0mm²

TB-6A

110.5

15.5

12.4

6.5

9.5

φ3.2

380V

6A

4.0-6.0mm²

TB-10A

116.7

20

14.9

8

10

φ4

380V

10A

6.0-10.0mm²

TB-16A

136.8

21.5

16.7

10

11.7

φ4.2

380V

16A

10.0-12.0mm²

TB-20A

153.5

24.5

17.4

11.5

13.2

φ4.3

380V

20A

12.0-14.0mm²

TB-30A

164.6

25

18.8

12

14.1

φ5.5

380V

30A

16mm²

TB-60A

187.6

29

23.5

12

16

φ6.8

380V

60A

25mm²

TB-80A

205

33

27

15

17

φ7.0

400V

80A

35mm²

TB-100A

250

46

31

22

21

φ9.0

400V

100A

40mm²
